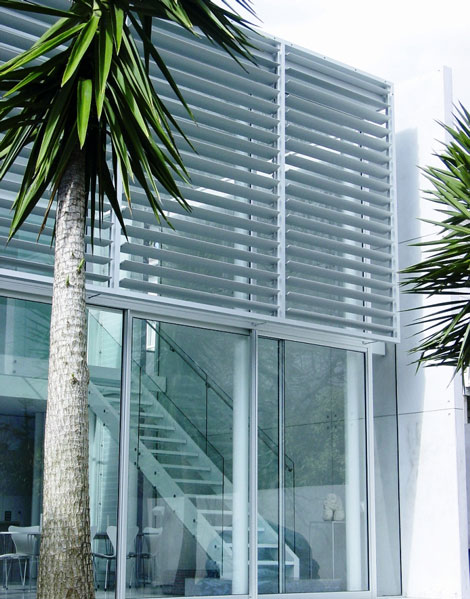

sun louvre 120mm spiral pivot
by: louvretec

Sun Louvre Systems

The scope of the Louvre Tec range incorporates an extensive array of blade sizes, operating systems and bracketing fixing methods.

There are eleven different Louvres sizes starting from the 40mm Midi blade through to 600mm Maxi blades.

Louvre systems can be fixed, hand operable or fully motorised and comes with a wide variety of framing elements.

Your installation will be primary determined by the exposure of the system to the wind. This identifies the maximum span you can make the louvre between fixing points. The larger the louvre more distance you can cover.

spans for horizontal louvres
louvre type	inside	Low	Med	high	vhigh
40mm mini	150cm	135cm	120cm	110cm	100cm
70mm mini	205cm	190cm	170cm	150cm	140cm
90mm midi	235cm	200cm	185cm	160cm	150cm
150mm midi	290cm	275cm	250cm	220cm	200cm
120mm	240cm	230cm	210cm	185cm	170cm
180mm	310cm	295cm	270cm	240cm	220cm
200mm maxi	370cm	370cm	355cm	295cm	260cm
300mm maxi	480cm	480cm	480cm	420cm	370cm
600mm maxi	715cm	655cm	560cm	470cm	410cm

wind zones defined
wind zone	Low	Med	high	vhigh
factored wind speed at building	32 m/s - 115km/h	37m/s - 133km/h	44m/s - 158km/h	50 m/s - 179km/h
ultimate limit state loads [kPa]	+1.1 -1.38	+1.48 -1.85	+2.09 -2.61	+2.70 -3.38
