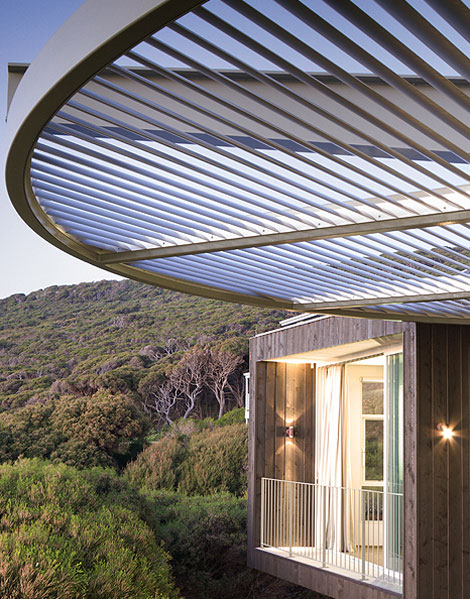

modular image: fixed system louvre options

external products

Fixed Sun Louvre Systems

End Fixed

The blades will be set according the angle you determine then fixed between frames so that all the fixings are hidden within side channels

Bracket Fixed

The blades will be set according the angle you determine then fixed to an extruded tear drop shaped bracket arm. This can be set in four different configurations.

The tear drops brackets are then fixed to a section of angle, flat or Tee section allowing you to set the blades within a frame or cantilever outside of a frame.

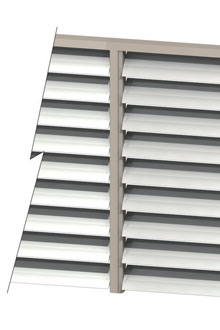

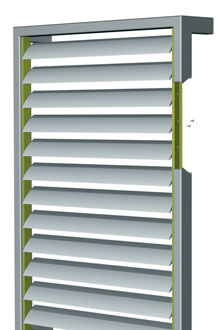

end fixed louvres end fixed louvres
end fixed louvres

Airfoil vertical and horizontal

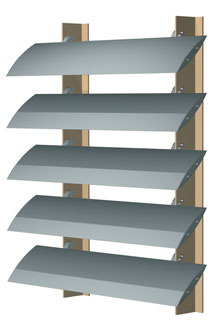

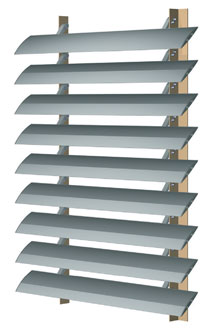

bracket fixed louvres bracket fixed louvres
BRACKET fixed louvres

Airfoil and Maxi
