Louvreline

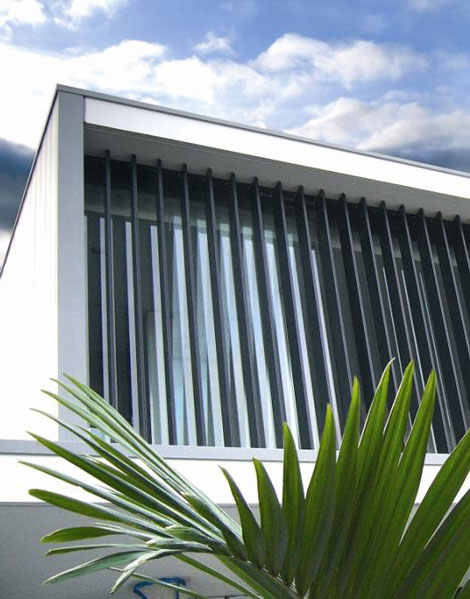

The Louvreline approach is a new concept in operable wall panels. Unlike a standard louvre system this elegant vertical louvre systems allows you to control the light and view from a side angle.

There are two styles of Louvreline systems, the Flush Panel where the louvres have square edges and close to create a flat wall and the Weatherboard where the louvres have angled edges and close create a stepped effect.



If you are an Architect, Building Designer and/or Builder and would like a catalogue for your library, please contact Modular to request your copy.
spans for vertical louvres
louvre type inside Low Med high vhigh specs
125 Weatherboard 310cm 290cm 270cm 250cm 230cm download pdf
180 weatherboard 370cm 350cm 320cm 285cm 265cm download pdf
120 flush panel 310cm 290cm 270cm 250cm 230cm download pdf
200 flush panel 470cm 445cm 405cm 350cm 310cm download pdf



wind zones defined
wind zone Low Med high vhigh
factored wind speed at building 32 m/s -
115km/h
37m/s -
133km/h
44m/s -
158km/h
50 m/s -
179km/h
ultimate limit state loads [kPa] +1.1
-1.38
+1.48
-1.85
+2.09
-2.61
+2.70
-3.38
