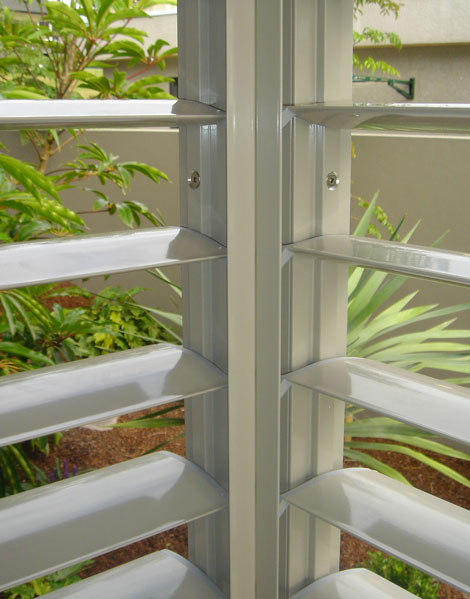

![90mm kiss pivot on fixed frame](img/xprod_slouvre_hand.jpg)
90mm kiss pivot in fixed frame
by: louvretec
external products
Hand Operated Sun Louvre Systems
There are two hand systems the Spiral and the Kiss Pivot operations.
The Spiral Pivot
The Spiral Pivot offers a clean seamless approach using a sophisticated quad gearbox, UV treated self lubricating bearings. This mechanism is housed in a neat 50 x 75mm drive box running the length of the system. The system is then actuated using a range of suitable handles or cranks. The blades will swing through 180° allowing full control in all conditions.
The Kiss Pivot
The Kiss Pivot is a simple approach to operation using double drive arms providing finger tip control. The blades close quietly onto a woolpile closing strip and can be secured with a six point Sidelock which holds the blades in the desired positions.

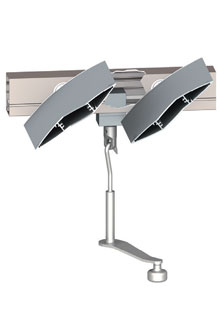

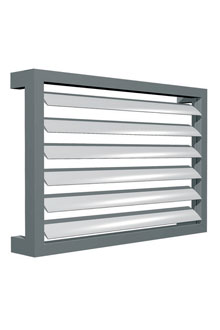

![hand operated spiral pivot system](img/xprod_slouvre_spiral1.jpg)
![hand opersted spiral pivot system](img/xprod_slouvre_spiral2.jpg)
spiral pivot system
Hand operated Airfoil Louvres
Learn more about the technical details of the Spiral Pivot System at
www.youtube.com/modularshades

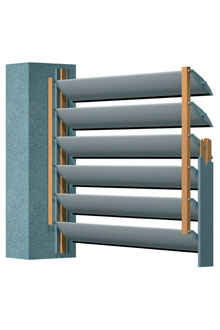

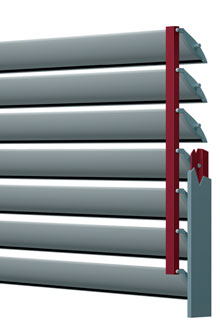

![bracket fixed louvres](img/xprod_slouvre_kiss1.jpg)
![bracket fixed louvres](img/xprod_slouvre_kiss2.jpg)
kiss pivot system
Mini and Midi Louvre
Learn more about the technical details of the Kiss Pivot System at
www.youtube.com/modularshades
